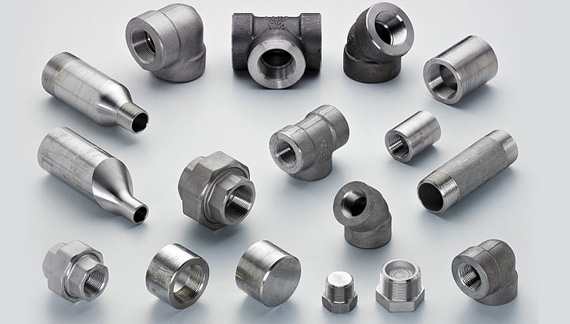

Forged fittings
Forged Fittings are offered in various shapes such as tees, elbows, cross, nipples etc. Precision finishing threading is available in NPT, BSPT & BSPP.
Forged Fittings are subject to high pressure for critical applications and can be manufactured in various grades of Stainless Steel & Alloy Steel.
Stainless Steel grades include 304, 316, 304L, 316L, 317 etc. Alloy Steel include Monel, Inconel, Hastelloy, Duplex Steel, Super Duplex Steel, 254 SMO.
Forged fittings can also be made in Carbon Steel and Special Grade Steel.
RANGE, SCHEDULES & TYPES
Range of Forged Fittings : 1/4" NB - 4" NB in Class 3000 , 6000 & 9000 with NACE Certification.
Forms Plug & Bushing.
fittings : Certifications
Types of Forged Fittings : Socket Weld (S/W) & Screwed (SCRD), Elbow 45 degree , Elbow 90 degree , Tee , Union , Half and Full Coupling, Cross. Cap, Swage Nipple
Forged fittings
45 degree elbow
90 degree elbow
Bushing
Tee
Cap
Cross
Full Coupling
Half Coupling
Reducing Coupling
Union
Nipple
Hex Head Bushing
Hex Head Plug
Square Head Plug
Round Head Plug
Hex Nipple
Street Elbow
Bull Plug
Boss
Swage Nipple
Pipe Nipple
Adapter
Union Male x Female
Branch Outlet
Pipe Nipple
90 degree Elbow Outlet
45 degree Lateral Tee
Lateral Outlet
Nipple Branch Outlet
MATERIALS OF CONSTRUCTION IN FORGED FITTINGS
Stainless Steel Socket Weld Forged fittings : ASTM / ASME A/SA 182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Socket Weld Forged fittings : ASTMA 105/A694/ A350 LF3/A350 LF2 F42/46/52/56/60/65/70.
Alloy Steel Socket Weld Forged fittings : ASTM A182 F1/F5/F9/F11/F22/F91.
Duplex Steel Socket Weld Forged fittings : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
