Delite

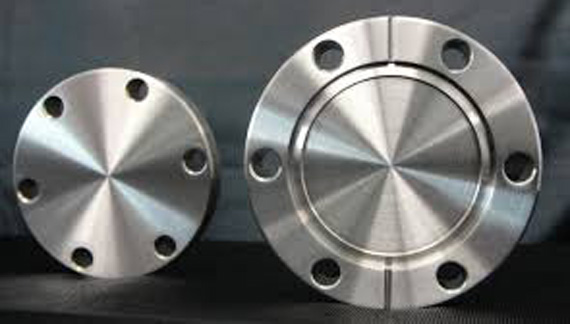

Flanges

Delite Tubes and Fittings offers a wide range of flanges, pipe flanges, tube flanges, din flange, dn flanges, pn flanges, ansi flang, asme flanges, jis flanges, bs flanges, en flanges, 150# flanges, rtj flanges, raised face flanges, rf flanges, loose flange, flat face flanges, ff flanges, weld flanges, weld on flanges, welding flanges, weld neck flanges, welding neck flanges, welded flanges, weldneck flange, slip on flanges, plate flanges, blind flanges, flat flanges, socket weld flanges, socket flanges, orifice flanges, threaded flanges, lap joint flanges, spectacle flanges, spectacle blind, orifice plate, steel flanges, carbon flanges, carbon steel flanges, stainless flanges, stainless steel flanges, metal flanges, based on guaranteed quality.

In ASA/ANSI flange, our pressure rating includes 75PSI, 150PSI, 300PSI, 400PSI, 600PSI, 900PSI, 1500PSI and 2500PSI. In PN/DIN/EN/BS, our pressure rating includes PN2.5, PN6, PN10, PN16, PN25, ,PN40, PN64, PN100, PN160, PN250, PN320 and PN400. And our pressure rating for JIS flange covers 2K, 5K, 10K, 16K, 20K, 30K, 40K and 63K. We can offer carbon steel in ASTM/ASME A/SA105 A/SA105N & A216-WCB, DIN1.0402, DIN1.0460, DIN1.0619 and stainless steel in ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409 material to satisfy you.

RANGE, SCHEDULES & TYPES

ANSI/ASME flange:The standard of ASME/ANSI B16.5 covers weld neck flange, threaded / screwed flange, slip on flange, socket weld flange, lap joint flange, blind flange for sizes up to 24 diameter, in rating c lasses of 150, 300, 400, 600, 900, 1500 and 2500.
BS flange: The standard of BS10 Table D, E, F, H, J, K, R, S, T covers Slip On Boss, Plate Blind, Weld Neck, Plate Slip On, Bossed Screwed / Threaded for sizes
to NB4000. As for BS4504 Section 3.1: 1989 specification, we can offer Slip On Plate (Code 101), Blind / Blank (Code 105), Weld Neck (Code 111), Slip On (Code 112),
Screwed / Threaded (Code 113) for size range is DN10 through to DN4000 diameter and class rating includes PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100.
DIN flange : The standard of DIN flanges covers DIN 2527 PN6, PN10, PN16, PN25, PN40, PN64, PN100 for Blind Flange, DIN2573 PN6, DIN2576 PN10, DIN2543 PN16, DIN2544 PN25, DIN2545 PN40, DIN2502 PN16, DIN2503 PN25, DIN2503 PN40 for Flat Flange for welding (Slip On), DIN2630 PN1, DIN2630 PN2.5, DIN2631 PN6, DIN2632 PN10, DIN2633 PN16, DIN2634 PN25, DIN2635 PN40, DIN2636 PN64 , DIN2637 PN100, DIN2638 PN160, DIN2628 PN250, DIN2629 PN320, DIN2627 PN400 for Welding Neck Flange, DIN 2641 PN6, DIN2642 PN10
JIS flange : The standard of JIS B2220 covers blind flange (BL), slip on flange (SOP), plate flange (PL) and weld neck flange (WN) for sizes from 10A up to 1500A diameter, in rating classes of 2K, 5K, 10K, 16K, 20K, 30K, 40K and 63K.
